Dongguan Yonghui Leather Machinery Co., Ltd.

Walled Shoe btttom Attaching Machine Outsole Press Machine

Model Number: YH-710C
Pcs of Lateral Latexes 16
Height of Lateral Latexes 80mm
Adjustment of Constrction 2 sections
Pump 2.2kw
Oil Pressure 50kg/cm²
Productivity 250 pairs/hour
N.W 1140Kg
G.W. Be provided before shipment
Dimension(LxWxH) 1090x1000x1960mm
Packing size(LxWxH) 1150x1220x2030mm

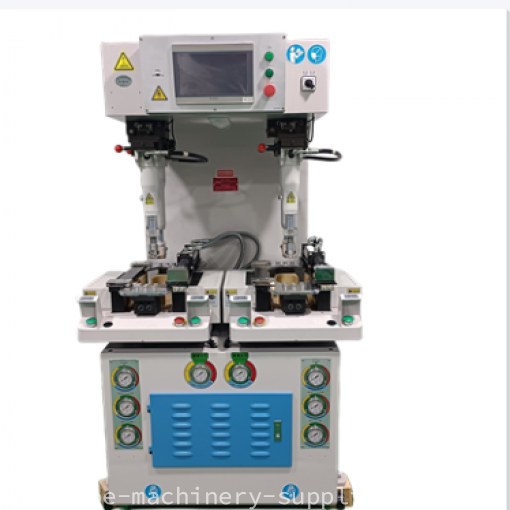

The machine adopts computer screen, PLC control, Hydraulic systemdesign suitabie for outsole attaching of shoes,boots, casual shoes, and kinds of walled shoes. The perfect pressing of outsole, side, toe and heel forming can be accomplished simultaneously or separarely.

There is a prepared oil-tank to supplement oil when cylinder rising which makes the rising faster and saves the operation time to increae benefit.

When the mechanism of front-rear pressing reccedes, a special circuit device is adopted to control the receding stroke, and the proper receding distance is accordingly for locating different sizes of shoes.

Independent pressure adjustment. Adjustment handle in the front of machine.

This machine is available to press shoes with lasts between130mm and 400mm

in length,140mm in width.below190mm in height. Below 80mm in height of walled outsoles, such as jogging .walled sports and casual shoes.
